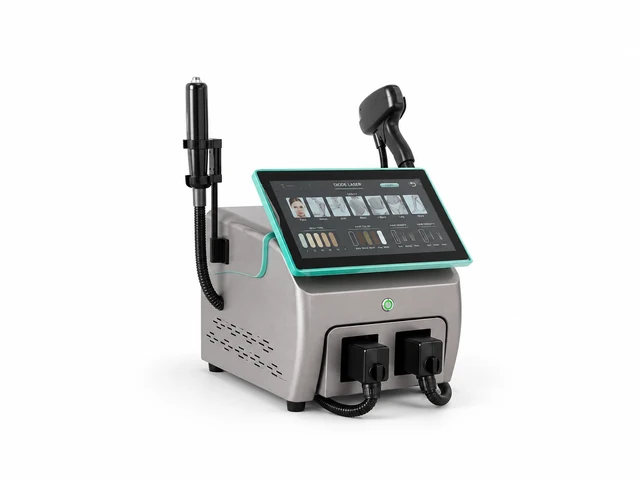

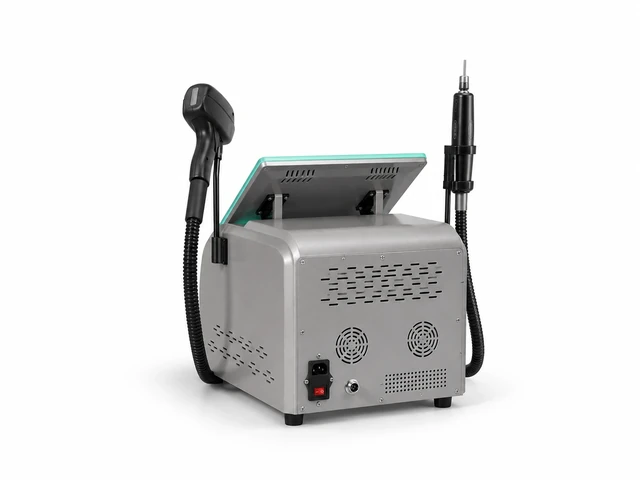

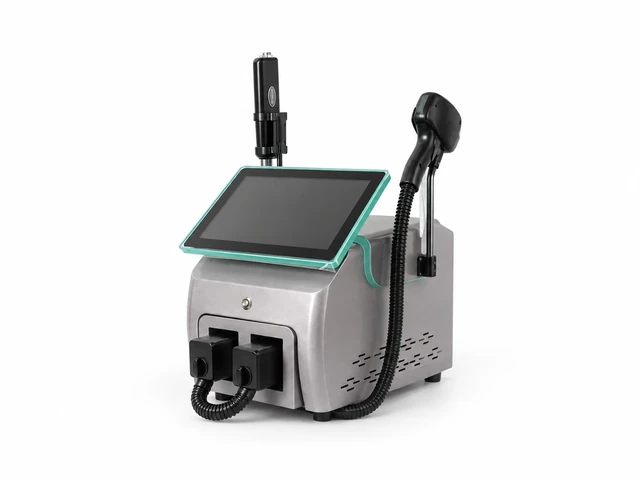

Diode laser hair removal
Power: 3000 W
Operating frequency: 1–10 Hz
Energy density: 120–400 J/cm²
Handpiece cooling: TEC + sapphire cooling
Spot size: 13 x 30 mm
Pulse duration: 5 ms – 400 ms
Display: 15.6 inches
Protection temperature: 55 °C
Ambient humidity: < 80%
Machine dimensions: 62 x 45 x 55 cm
Net weight: 30 kg
Product overview
This professional diode laser hair removal system combines four wavelengths—755 nm, 808 nm, 940 nm and 1064 nm—to target hair follicles at different depths.

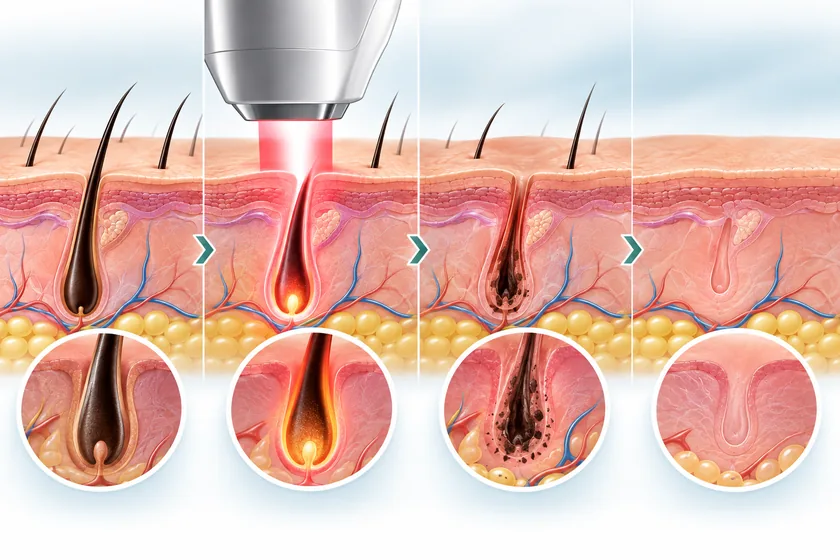

Laser energy is absorbed by melanin in the hair and converted into heat. Through selective photothermal action, the system delivers controlled energy to structures associated with hair growth while treatment parameters can be adjusted according to skin phototype, hair characteristics and treatment area.
Each wavelength has different absorption and penetration characteristics. Combining four wavelengths in one handpiece gives practitioners more flexibility than relying on a single-wavelength diode laser.
Features
Four Wavelengths in One System
755 nm, 808 nm, 940 nm and 1064 nm work together in a single diode laser platform, extending the range of hair depths, skin phototypes and treatment areas that can be addressed.
755 nm – Superficial Hair Follicles
Higher melanin absorption makes this wavelength useful when working with more superficial follicles and selected finer hair.
808 nm – Versatile Diode Wavelength
A widely used wavelength in professional laser hair removal, offering a practical balance between melanin absorption and penetration depth for a broad range of treatments.
940 nm – Additional Depth Coverage
The 940 nm wavelength provides another penetration profile, complementing the other wavelengths when working with follicles located at different depths.
1064 nm – Lower Melanin Absorption
Lower epidermal melanin absorption makes 1064 nm an important part of multi-wavelength protocols, particularly when treatment parameters need to be adapted for darker skin phototypes.
Contact Cooling
Integrated contact cooling helps manage the skin surface temperature while laser energy is delivered, improving treatment comfort and supporting continuous professional use.
One Platform for Multiple Treatment Areas
Adjustable parameters and four wavelengths allow practitioners to configure treatments for different areas of the face and body without changing to a separate laser system.
Applications
Professional Hair Reduction
The system is designed for professional laser hair removal and progressive hair reduction. Treatment settings can be adjusted according to hair thickness, pigmentation, skin phototype and the area being treated.
Different Hair Characteristics
The four-wavelength configuration provides greater flexibility when working with hair of different depths, thicknesses and pigment levels. Individual response varies, so wavelength selection and treatment parameters should be based on professional assessment rather than a single preset.
Different Skin Phototypes
The combination of 755, 808, 940 and 1064 nm diode laser wavelengths gives practitioners additional options when developing protocols for different skin phototypes, including darker skin tones.
Face & Body Hair Removal
Typical treatment areas include:
face
underarms
arms
legs
chest
back
bikini and intimate areas
Treatment parameters should be selected according to the skin, hair and anatomical area.
Efficient Professional Treatments
A larger spot size and adjustable repetition rate can help improve treatment efficiency when working on larger body areas. Actual session time depends on the treatment area, selected parameters and individual protocol.
*The treatment effect varies from person to person, which is only for reference.
