2‑in‑1 Diode Nd:YAG Laser
Input Power: 2500W
Screen: 15.6 inch touch screen
Diode Laser Wavelength: 808nm
Diode Laser Energy: 1J/cm2 - 50J/cm2
Diode Laser Handle Power: 1000W (16 bars)
Diode Laser Spot Size: 13mm*40mm
Diode Laser Frequency: 1Hz - 10Hz
Q‑Switch Wavelength: 1064nm; 1024nm; 755nm; 532nm
Q‑Switch Output Power: 50 - 2500mJ
Q‑Switch Spot Size: 03mm
Q‑Switch Handle Power: 500W
Q‑Switch Frequency: 1 - 6Hz
Package Size: 68cm*60cm*48cm
N. W./ G. W.: 33kg/48kg
Product overview
This 2-in-1 professional laser system combines an 808 nm diode laser for hair removal with a Q-switched Nd:YAG platform for tattoo and pigmentation applications.

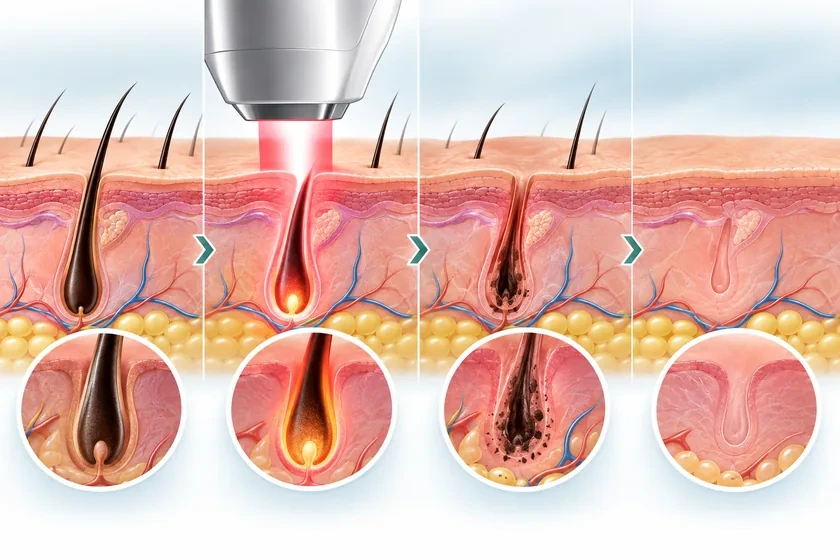

The 808 nm diode laser targets melanin within the hair follicle. Absorbed laser energy is converted into heat and acts on structures involved in hair growth. Energy and frequency can be adjusted according to the treatment area, hair characteristics, skin type, and professional protocol.
The Q-switched Nd:YAG laser delivers short, high-energy pulses to selected pigments. The absorbed energy produces a photoacoustic effect that breaks pigment particles into smaller fragments, which can then be gradually processed by the body.
Multiple wavelengths give practitioners additional options when working with pigments of different colors and depths.
Features
808 nm Diode + Q-Switched Nd:YAG in One System
Two laser technologies are integrated into a single platform, covering professional laser hair removal, tattoo removal, and pigmentation treatments without requiring separate machines for each application.

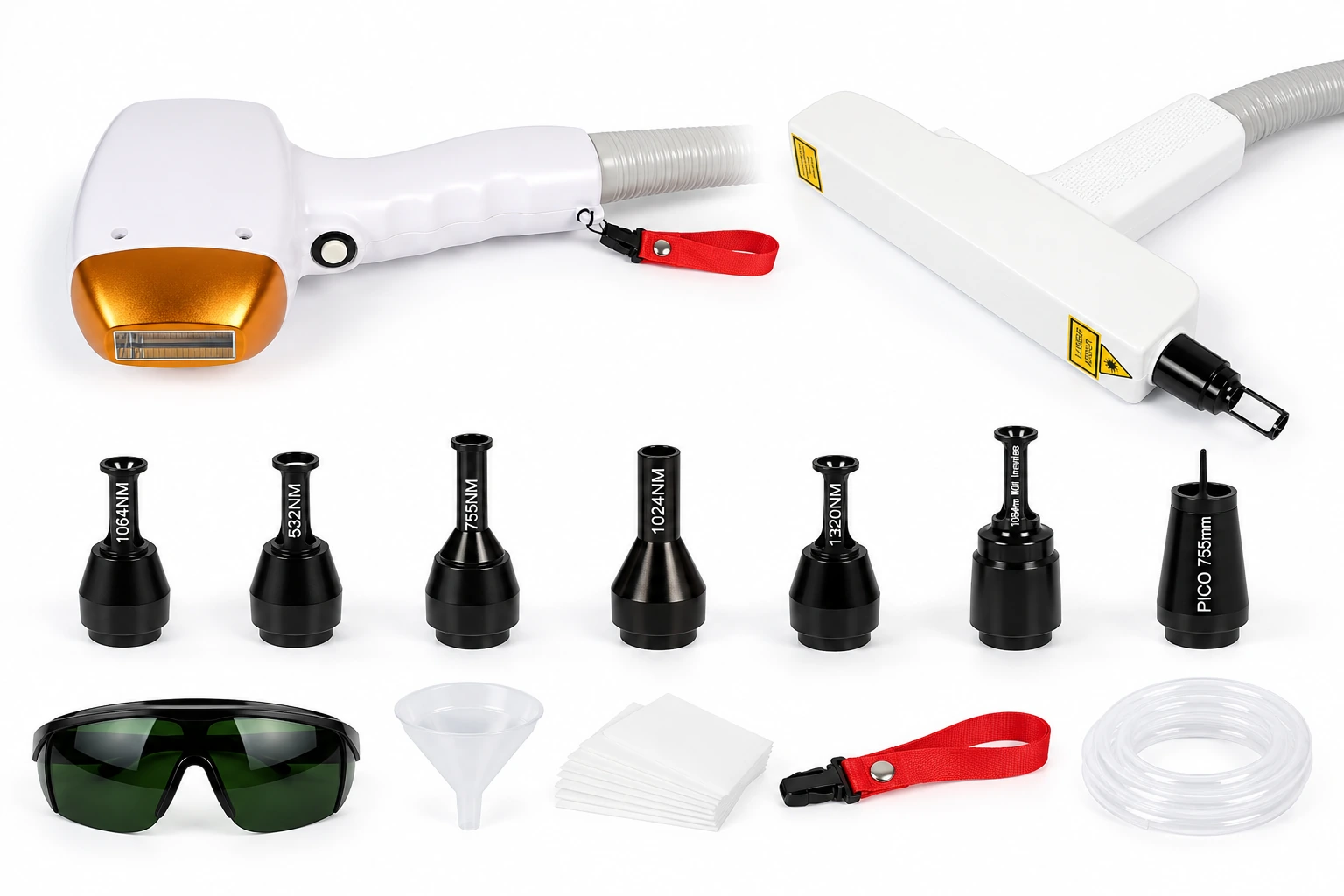

1000 W 808 nm Diode Laser with 16 Bars
The diode laser handpiece provides 1000 W power with 16 laser bars and a large 13 × 40 mm spot size.
Energy is adjustable from 1–50 J/cm², with a frequency range of 1–10 Hz, giving practitioners flexibility when setting parameters for different hair and treatment areas.
Multi-Wavelength Q-Switched Laser
The Q-switched system includes 1064 nm, 1024 nm, 755 nm, and 532 nm wavelengths, with adjustable output energy from 50–2500 mJ and a frequency range of 1–6 Hz.
Different wavelengths can be selected according to the color, depth, and characteristics of the target pigment.
15.6-Inch Touchscreen
A large touchscreen provides centralized control of both laser systems, making it straightforward to select functions and adjust treatment parameters from one interface.
Built for Professional Aesthetic Businesses
With 2500 W input power, AC 110/220 V compatibility, and two laser technologies in one unit, the system is configured for regular use in aesthetic clinics, beauty centers, and professional laser treatment businesses.
Applications
808 nm Diode Laser Hair Removal
The 808 nm module is designed for professional laser hair removal on areas including the face, underarms, arms, legs, back, and bikini line.
Its combination of 1000 W handpiece power, 13 × 40 mm spot size, adjustable energy, and frequencies up to 10 Hz allows treatment settings to be adapted to hair thickness, pigmentation, treatment area, and individual skin characteristics.
The system can be incorporated into professional protocols for progressive hair reduction on both female and male clients.
Tattoo Removal
The Q-switched Nd:YAG laser provides multiple wavelength options for different tattoo pigments.
1064 nm: primarily used for selected darker pigments, including certain black and blue tattoo inks.
532 nm: suited to selected superficial pigments and certain red, yellow, and brown tattoo colors.
755 nm: provides an additional option for selected pigment colors and characteristics.
1024 nm: according to the specified configuration, this wavelength is intended for protocols related to carbon peeling and general skin appearance.
Wavelength and treatment parameters should be selected according to pigment color, depth, composition, and the professional treatment protocol.
Pigmentation & Cosmetic Pigment Removal
Beyond tattoo removal, the Q-switched module can be incorporated into professional protocols addressing the appearance of freckles, visible spots, age-related pigmentation, and selected hyperpigmentation concerns.
It also provides options for removing selected cosmetic pigments from eyebrows, eyeliner, and lip-line areas, where appropriate for the pigment and professional protocol.
Carbon Peeling & Skin Rejuvenation
With the appropriate configuration and protocol, the Q-switched system can also be used for carbon peeling treatments focused on skin texture, pore appearance, and overall skin rejuvenation.
*The treatment effect varies from person to person, which is only for reference.
