4 wavelength diode laser

Product overview

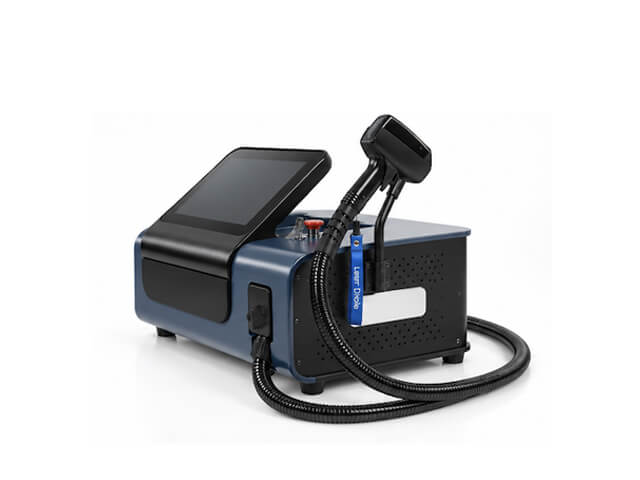

This four-wavelength diode laser hair removal machine combines 755 nm, 808 nm, 940 nm and 1064 nm in a single handpiece.

During operation, melanin in the hair absorbs laser energy and converts it into heat. This selective photothermal action targets structures associated with hair growth, while energy density, pulse width and repetition rate can be adjusted according to skin phototype, hair characteristics and treatment area.

Each wavelength has a different absorption and penetration profile. Bringing all four together gives practitioners more flexibility when working with follicles at different depths rather than relying on a single 808 nm wavelength.

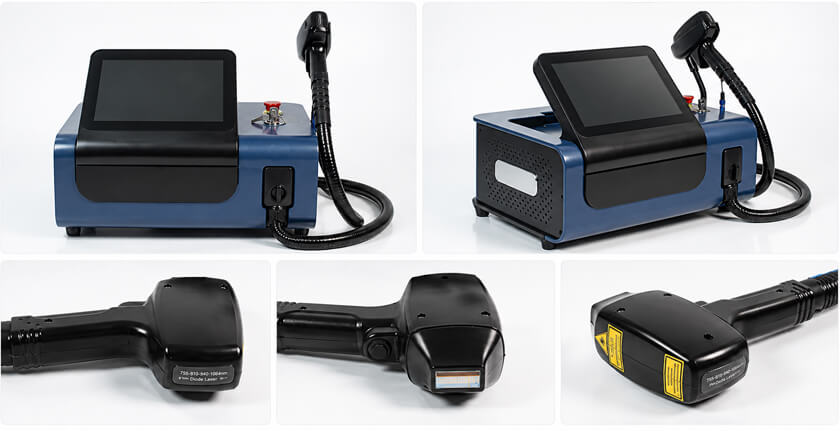

Features

755 + 808 + 940 + 1064 nm in One Handpiece

Four wavelengths work within the same multi-wavelength diode laser platform:

755 nm — Higher melanin absorption makes it useful for more superficial follicles and selected finer hair.

808 nm — A widely used wavelength in professional diode laser hair removal, offering a practical balance between melanin absorption and penetration depth.

940 nm — Adds another penetration profile for follicles located at different depths.

1064 nm — Lower epidermal melanin absorption provides additional flexibility when setting protocols for darker skin phototypes.

1000 W Laser Power

The handpiece delivers 1000 W laser power with a large 13 × 40 mm spot size, providing practical coverage for both smaller areas and larger body zones.

Adjustable Parameters

Energy density ranges from 1–100 J/cm², pulse width from 10–400 ms, and repetition rate from 1–10 Hz.

These settings allow practitioners to configure the system according to hair thickness, pigmentation, skin phototype and treatment area instead of relying on a single preset.

Adjustable Contact Cooling

The handpiece provides temperature settings from 0–30°C. Contact cooling helps manage the skin surface temperature during laser delivery and supports treatment comfort.

Built for Professional Hair Removal

A 12.1-inch touchscreen provides access to skin type, hair color, body area and treatment settings from one interface.

With 2000 W total machine power, the system is configured for aesthetic clinics, beauty centers and professional hair removal businesses that need one platform for different client profiles.

Applications

Professional Diode Laser Hair Removal

The system is designed for professional laser hair removal and progressive hair reduction. Its four-wavelength configuration provides flexibility for hair follicles at different depths and hair with different thicknesses and levels of pigmentation.

Different Skin Phototypes

Combining 755, 808, 940 and 1064 nm gives practitioners additional options when configuring protocols for different skin phototypes. The 1064 nm component is particularly relevant when lower epidermal melanin absorption is required.

Face & Full-Body Hair Removal

The machine can be configured for common hair-removal areas including:

• face

• underarms

• arms

• legs

• chest

• back

• bikini and intimate areas

Settings should be selected according to the skin, hair and anatomical area.

Large-Area Hair Removal

The 13 × 40 mm spot size, repetition rate of up to 10 Hz, and sliding operation mode support efficient coverage of larger areas such as the legs, back and chest.

Treatment Comfort

Adjustable contact cooling works alongside configurable energy density and pulse width, giving practitioners greater control over the treatment experience across different areas and skin characteristics.

*The treatment effect varies from person to person, which is only for reference.

Request a quote

Related products

Diode laser hair removal

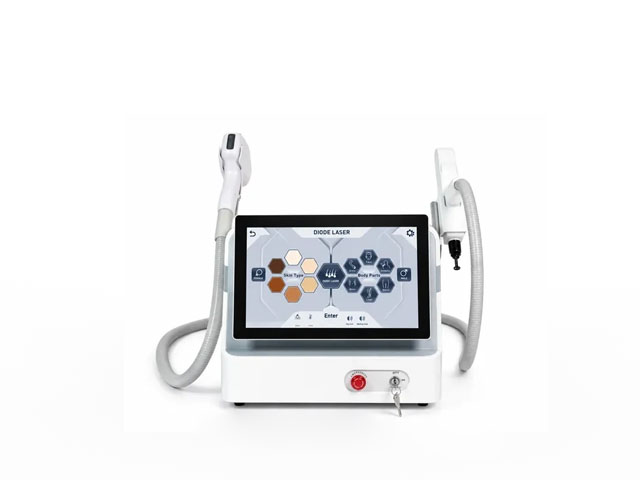

2‑in‑1 Diode Nd:YAG Laser
