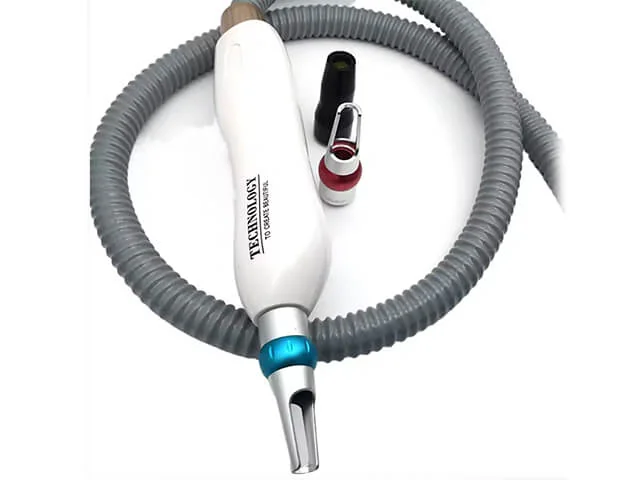

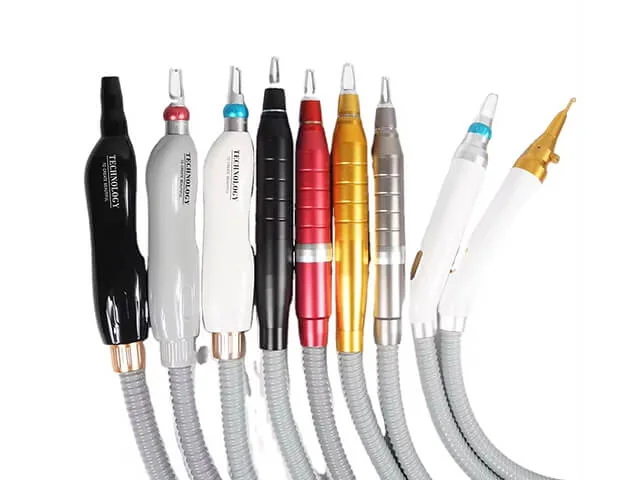

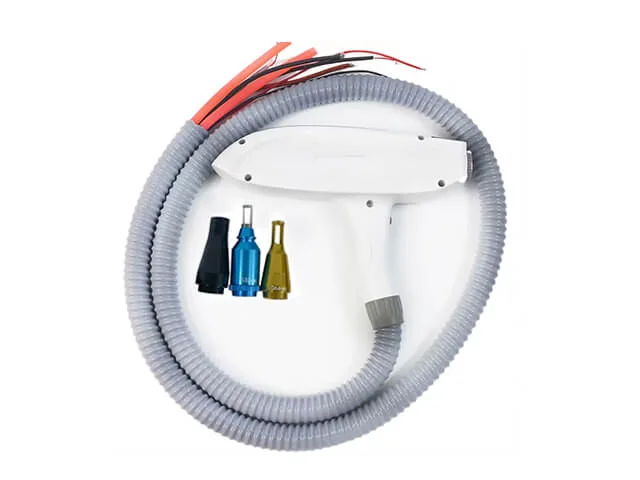

Q-Switched ND yag laser Handpiece
Product name: tattoo removal gun
Specification: 1064nm 532nm 1032nm
White color
Working model: pedal without button
Hose: Chinese steel wire plastic hose with silicone protective cover.
Single package size: 50*33*10cm
G.W: 2kg
Product overview
This Q-switched Nd:YAG laser handpiece is a replacement component for compatible tattoo-removal and pigmentation systems. The original page lists 1064 nm for black and blue spots, age spots, sunburn marks and tattoos, and 532 nm for red and brown tattoos.
A 1320 nm black-doll handpiece is also named in the original description. This is a handpiece and tip kit; select it according to the installed laser system and required wavelength.
Features

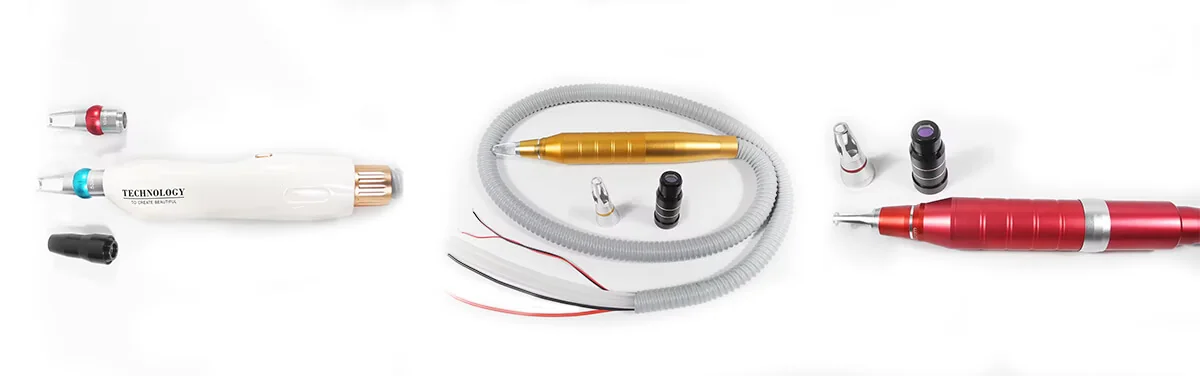

Three-head Nd:YAG handpiece — The original feature text describes a tattoo-removal handle with 532 nm, 1064 nm and black-doll heads.
Wavelength-specific tips — The 1064 nm and 532 nm heads serve the different tattoo-colour and pigmentation applications listed in the overview.
Replacement part sourcing — The handle and its supplied heads are intended for compatible Q-switched Nd:YAG machines and professional service buyers.
Applications

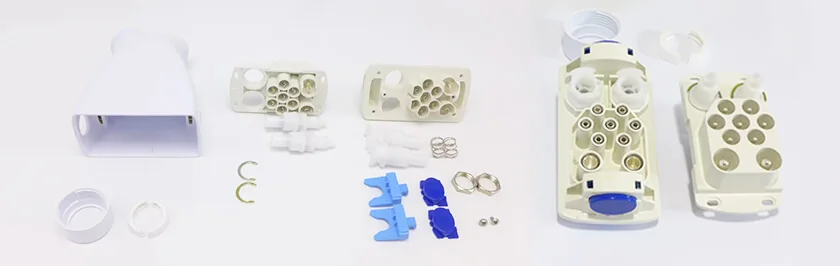

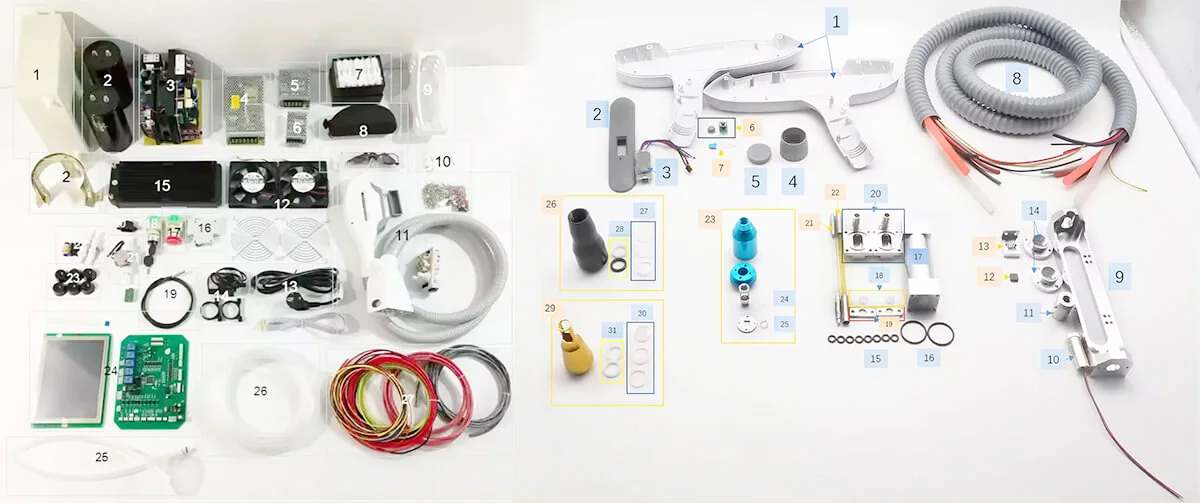

Handpiece kit and spare parts — The original 31-item component list below identifies the housing, counter, button, cable and tube assembly, laser cavity, lamp, rod, 532 nm and 1064 nm tips, black-doll tip, filters, seals and fittings. The xenon lamp is listed as OD6 mm × AL75 mm × OL130 mm.
Yag Laser Handpiece Kit
- Handpiece housing
- Counter window cover
- Digital counter
- Handle screw
- Handle cap
- Handle button
- Capacitor for ground cable
- Hose with cables and tubes
- Metal structure with cavity
- Yag laser infrared indicator
- Infrared indicator holder
- Tetravalent component
- 7-shaped iron block for tetravalent fixing
- Yag laser mirror fixing piece
- ID 5 mm O-ring for xenon lamp and laser rod
- ID 24 mm O-ring for the cavity main body
- Cavity main body
- Lamp cap
- Laser rod cap
- Aluminium terminal
- Yag laser xenon lamp OD6 mm × AL75 mm × OL130 mm
- Yag laser crystal rod
- Yag laser 532 nm tip
- Glass filter for Yag laser 532 nm tip
- KPT
- Yag laser black-doll tip
- Filter glass for black-doll tip
- O-ring for black-doll tip
- Yag laser 1064 nm tip
- Filter glass for Yag laser 1064 nm tip
- O-ring for Yag laser 1064 nm tip
