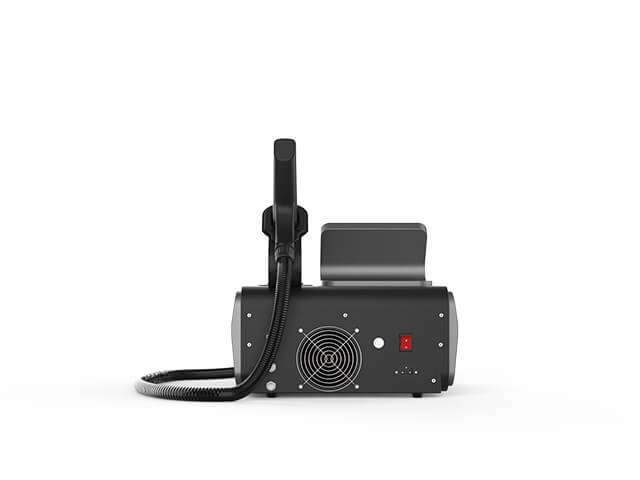

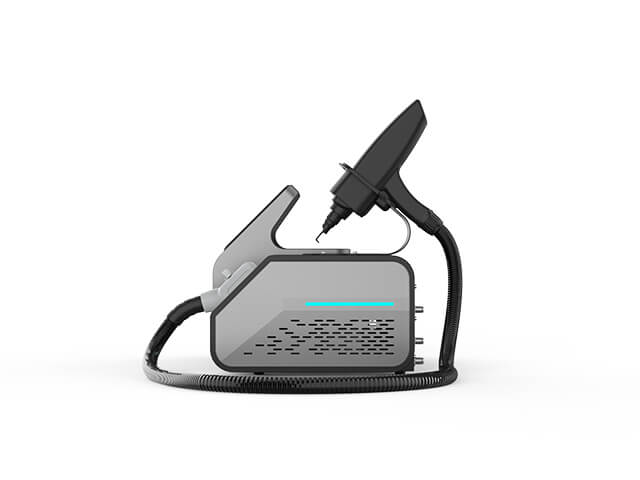

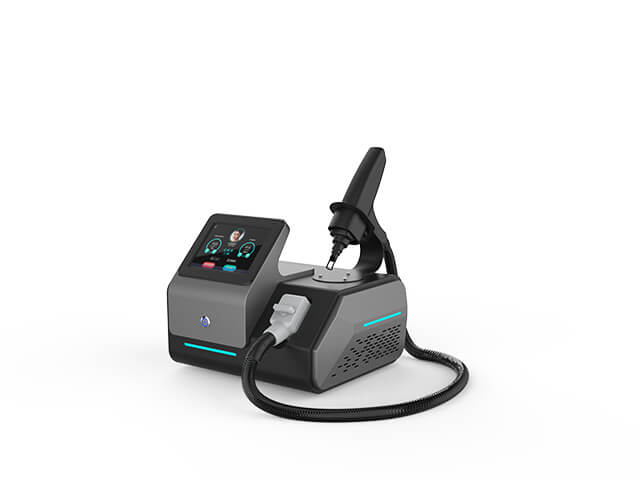

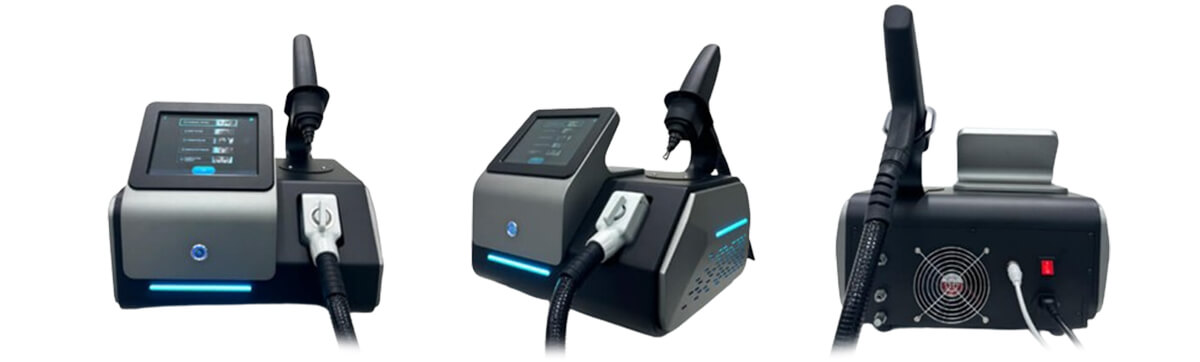

ND Yag Laser

Power: 3000W
Energy: 10-2000mj
Frequency: 1-10Hz
Wavelength: 532nm/1064nm/1320nm /755nm(optional)
Screen Size: 12.1-inch
Cooling system: Water cooling + Air cooling

WhatsApp: +86-178-3996-2070

bdstmedical@gmail.com

Request a quote →

Product overview

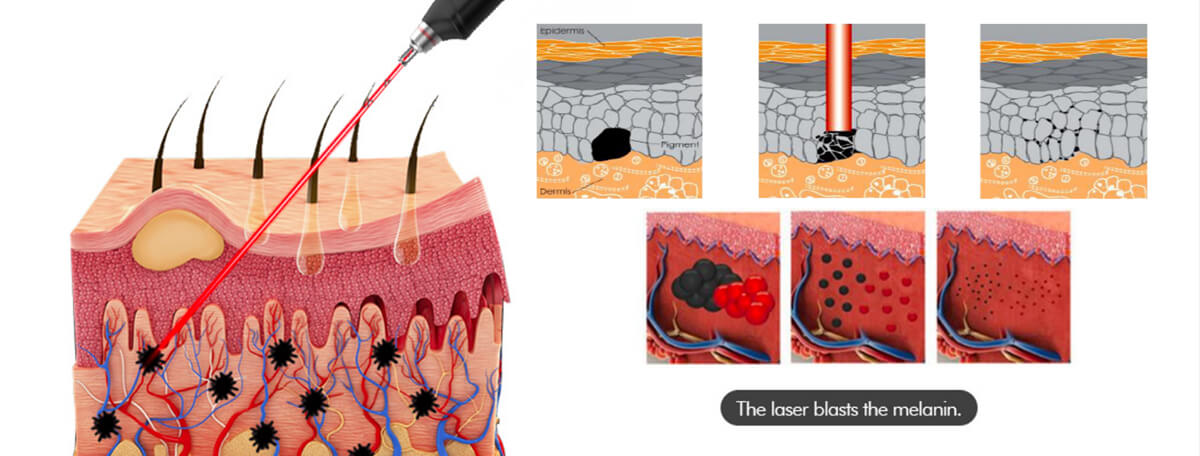

The Q-switched Nd:YAG tattoo removal laser delivers short, high-energy pulses to pigment in the epidermis and dermis. Absorbed energy creates the light-induced explosion effect described in the original product introduction, fragmenting pigment particles.

Smaller fragments are expelled or processed by phagocytes and the lymphatic system, allowing treated color to fade gradually. The page also describes a picosecond-style blasting effect applied to the nanosecond system for finer pigment fragmentation.

For clinics and distributors, the system combines 1064, 532, 1320 and 755 nm options for professional tattoo removal and pigmentation protocols. Wavelength selection depends on pigment color, depth and professional assessment.

ND Yag Laser : equipment detail

Features

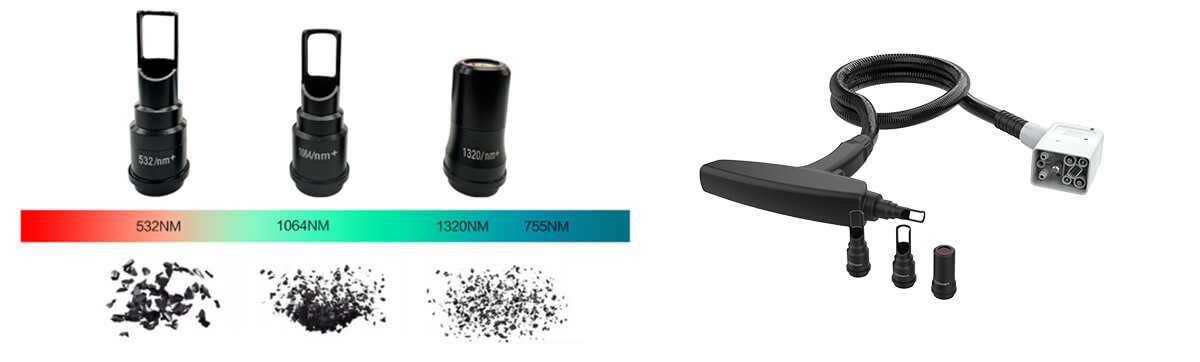

Four-Wavelength Pigment Coverage — The product lists 1064, 532, 1320 and 755 nm options for nine commonly used tattoo colors, from light orange to deep black.

Protocol Flexibility — The 532 and 1064 nm wavelengths are described as non-invasive options. Different wavelengths broaden the range of pigment colors and skin types that operators can evaluate.

ND Yag Laser : features

Concentrated Pigment Energy — Selective energy delivery is described as breaking pigment particles more strongly.

Large-Area Treatments — The handpiece can work quickly across a larger pigmented area.

Recovery and Tissue Protection — The original description states that surrounding tissue remains undamaged and recovery time is short.

ND Yag Laser : features

Applications

Multicolor Tattoo Removal — The four-wavelength configuration is presented for pigments ranging from light orange to deep black.

Benign Pigmented Lesions — The original application list reports a high clearance rate for benign pigmented lesions.

Acne-Scar Treatment — The page states that acne scarring can be reduced after just three treatments.

Wrinkle Improvement — The product description also reports high rates of improvement in wrinkle severity.

ND Yag Laser : applications

*The treatment effect varies from person to person, which is only for reference.

What to confirm before ordering

Check wavelengths, pulse duration and energy per pulse; a model name does not replace these specifications.
Request the accessories list, eye protection requirements and maintenance information for the quoted configuration.
Provide the destination country, intended use, quantity and voltage. Request a specification sheet and a quotation identifying the model, accessories and support terms.
Check the documentation and local requirements for professional use before placing an order.

Ask about the configuration of ND Yag Laser →
