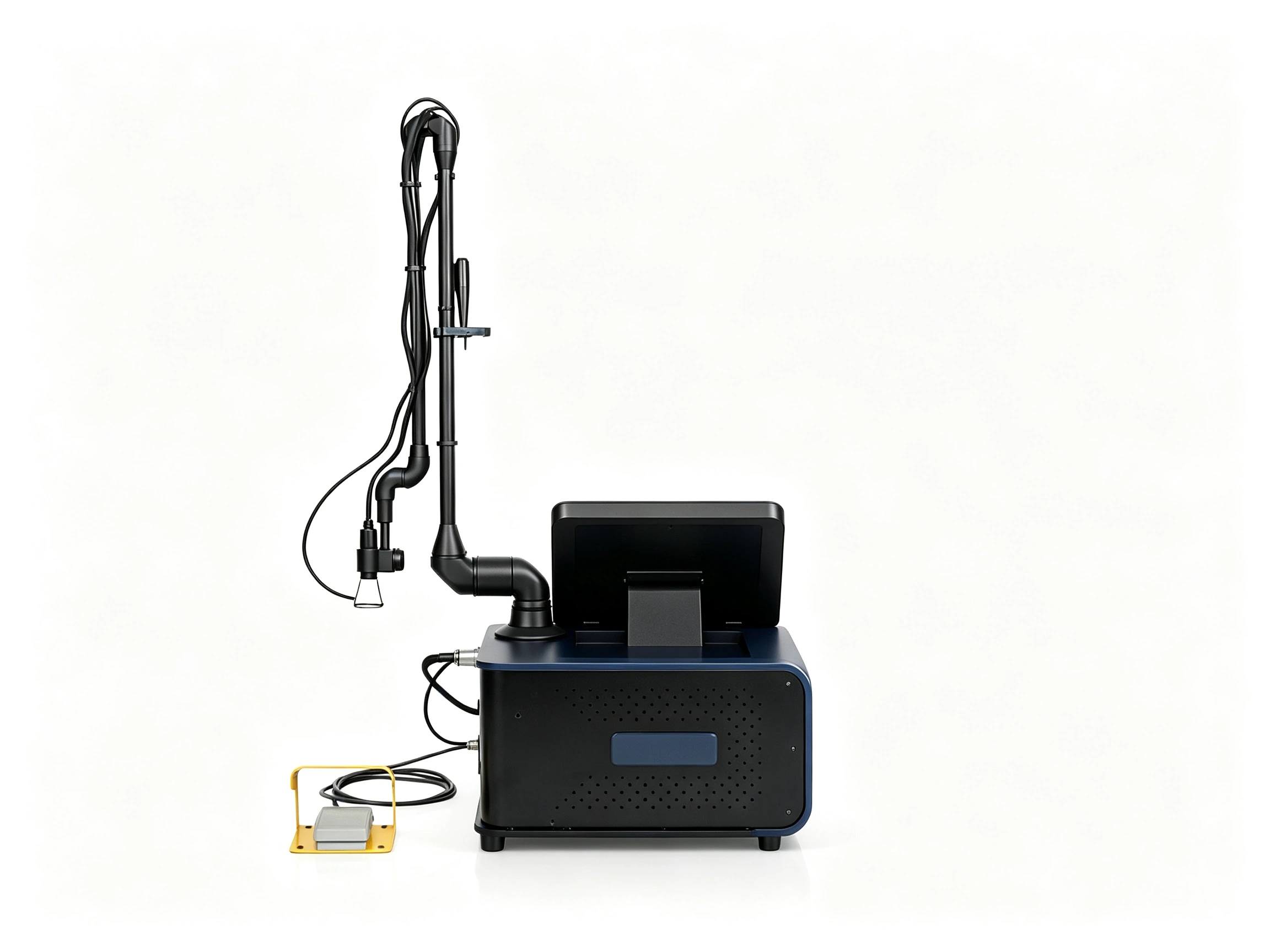

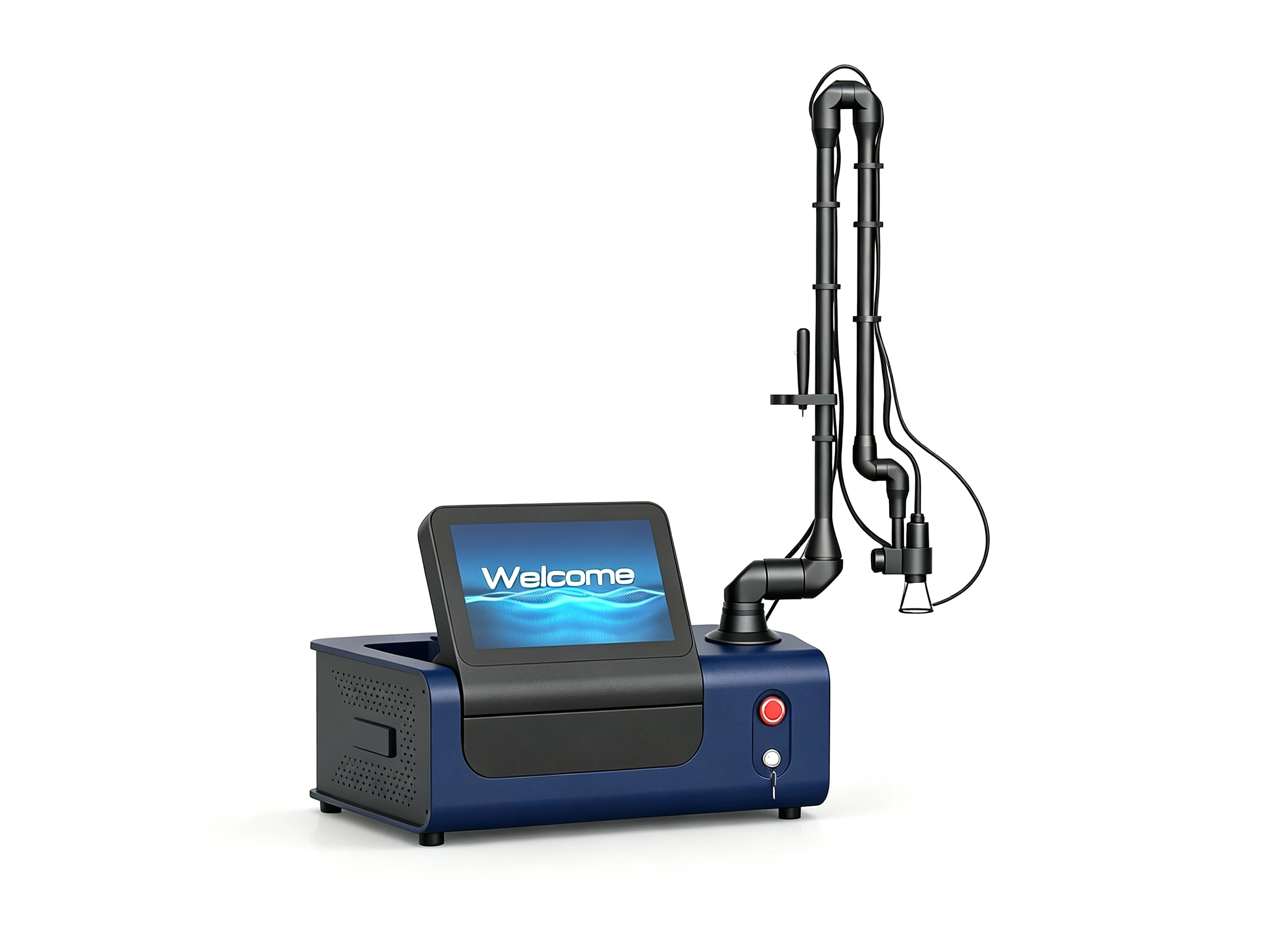

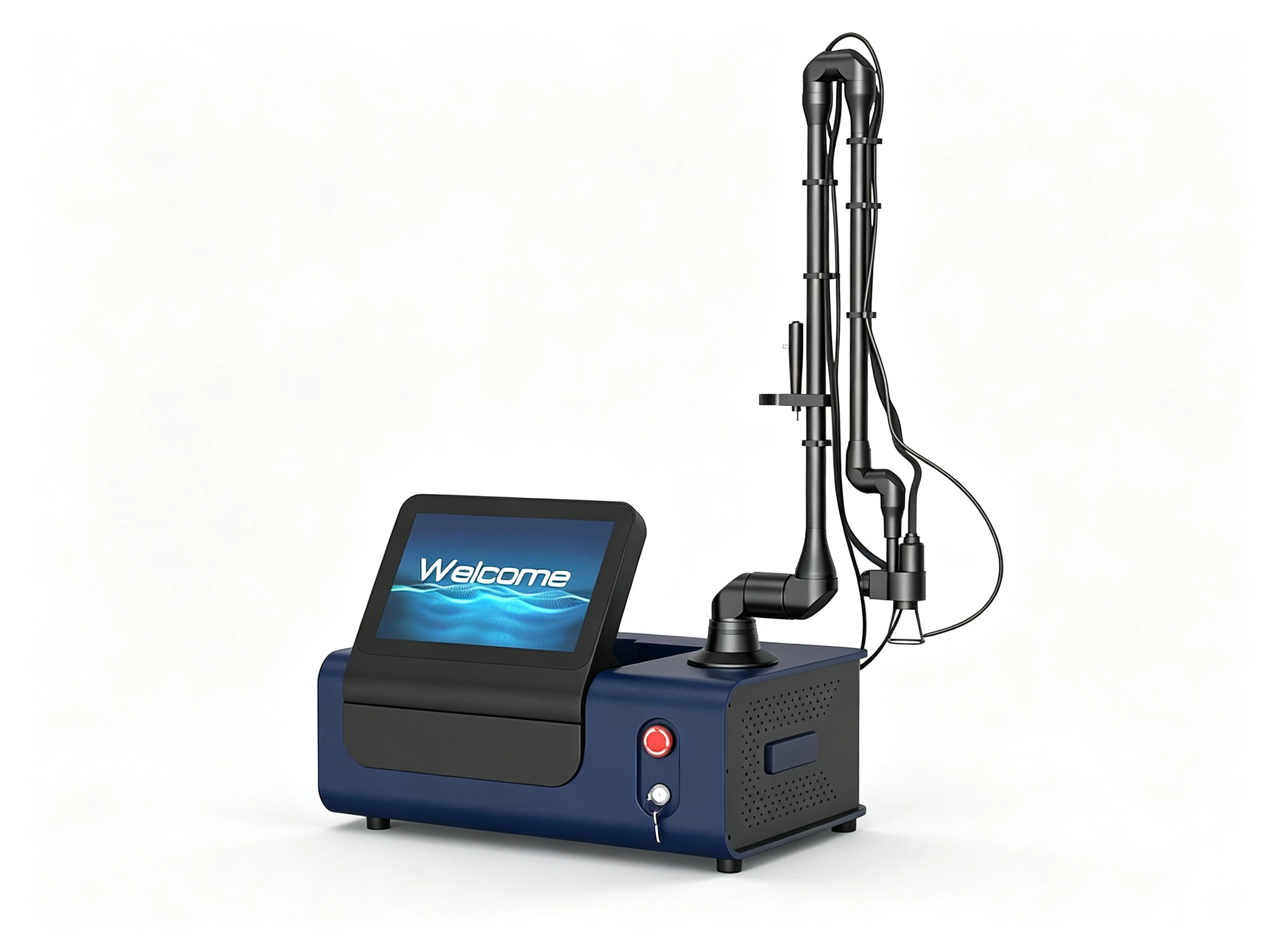

CO2 Laser Skin Resurfacing
Working Mode: single pulse, continuous pulse, repeated pulse, ultra pulse
Output Power: 0‑60W (adjustable)
Input Power: ≤1000W
Laser Type: Sealed‑off CO² laser
Laser Wavelength: 10.6μm
Divergence Angle: 4mrad
Spot Diameter: ≤0.4mm
Working head Focal: F=75mm (optional)
Pulse Width: 0.02‑0.99s
Indication Beam: Red Diode Laser (650nm,≤5mW)
Cooling System: Air Cooling
Transmission System: 7‑Articulation Joint Spring Arm
Display Screen: 12.1 LCD
Input power: AC220V±10%, 50Hz
Temperature: 5‑40℃
Relative Humidity: <80%
Package Size: 75*55*33cm
G. W.: 38kgs
Product overview

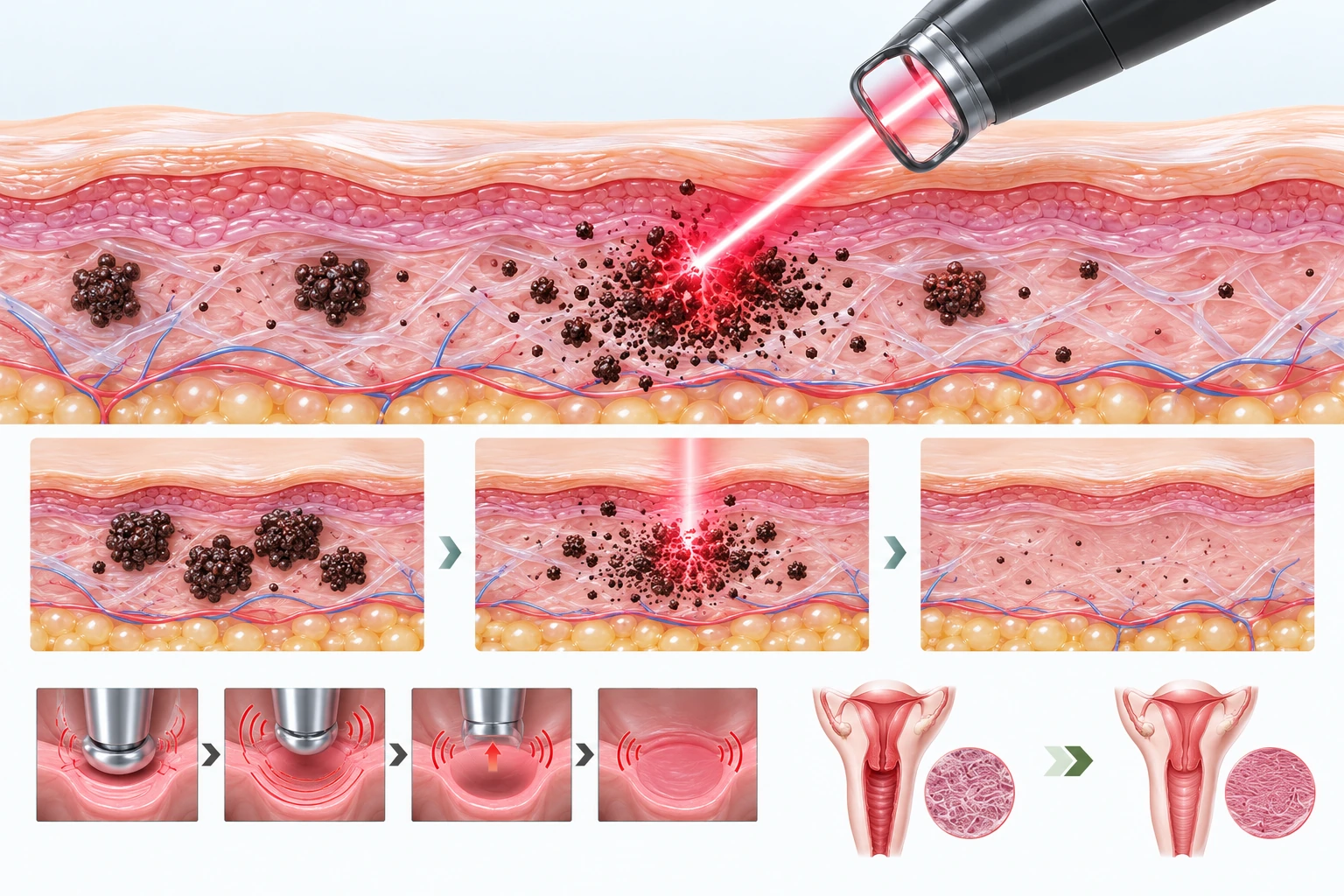

The fractional CO2 laser at 10.6 µm is built for aesthetic clinics, spas, and distributors looking for a versatile platform for facial and body treatments. It works on fractional technology: the beam splits into microbeams that penetrate the skin in thermal columns down to the dermis, leaving untreated tissue between each pulse. Because treated areas alternate with untreated skin, recovery tends to be faster than with full resurfacing.
These microcolumns reach both the superficial and deep dermis, stimulating collagen production gradually. The pulse pattern is random and adjustable, so each protocol can be tailored to the patient and the treatment area.
One machine combines six treatment modes: fractional, surgical, vaginal whitening, vaginal firmness, superficial, and combined. Clinics don't need separate equipment to cover multiple services. For those evaluating the cost of a fractional CO2 laser treatment or the equipment investment, this versatility reduces the number of machines to purchase. Final pricing depends on configuration and accessories, and a direct quote can be requested.
Features
12.1-inch foldable LCD touchscreen, adjustable during treatment.
10.6 µm wavelength, with a 650 nm, 2 mW red aiming diode for precise targeting of the treatment area.
Six treatment modes: fractional, surgical, vaginal whitening, vaginal firmness, superficial, and combined.
Scan shapes: square, triangular, circular, and hexagonal, adaptable to any facial or body area.
Seven-joint spring-loaded articulated arm, with 360° rotation and no obstructions, so you can work from any angle without repositioning the patient.
Applications
Facial rejuvenation and wrinkle treatment.
Skin firming and tightening.
Spots and freckles.
Scars, stretch marks, and acne marks.
Mole and wart removal via surgical mode.
Vaginal services: external whitening, firming, and tissue repair.
*The treatment effect varies from person to person, which is only for reference.
